Essential Fusing & Circuit Protection for Your 12V Solar Panel Setup: Utes, Caravans & DC-DC Chargers

Setting up a 12V solar panel installation for your ute or caravan opens up a world of off-grid possibilities, but ensuring proper solar panel fuse and solar panel wiring safety is paramount. This guide will walk you through the importance of selecting the right fuses and circuit breakers for your DC-DC charger fuse setup, vital for protecting your investment and ensuring reliable power.

Why Fusing Your 12V Solar System is Non-Negotiable

The importance of solar panel fuse lies in protecting your 12V electrical system from dangerous electrical faults. Without proper protection, an overcurrent protection or a short circuit protection, you risk damaging expensive components like your solar charge controller, batteries, or even cause a dangerous solar panel fire safety incident.

Key Fusing Points in Your Solar Setup

Solar Panel to Charge Controller/DC-DC Charger

This is your first line of defense. A fuse between solar panel and DC-DC charger or solar charge controller prevents damage from reverse current or unexpected surges from your solar panels. An inline fuse solar panel setup should always include appropriate solar panel cable protection. Cables can chafe or be damaged, leading to direct shorts. Fuses here isolate the panel, preventing severe issues.

DC-DC Charger to Battery Bank

Protecting your DC-DC charger is critical. A fuse here protects both the charger and your expensive battery bank. Without proper battery bank fusing, a fault could lead to rapid discharge, overheating, and even battery damage.

Choosing the Right Fuse or Circuit Breaker

Fuses vs. Circuit Breakers

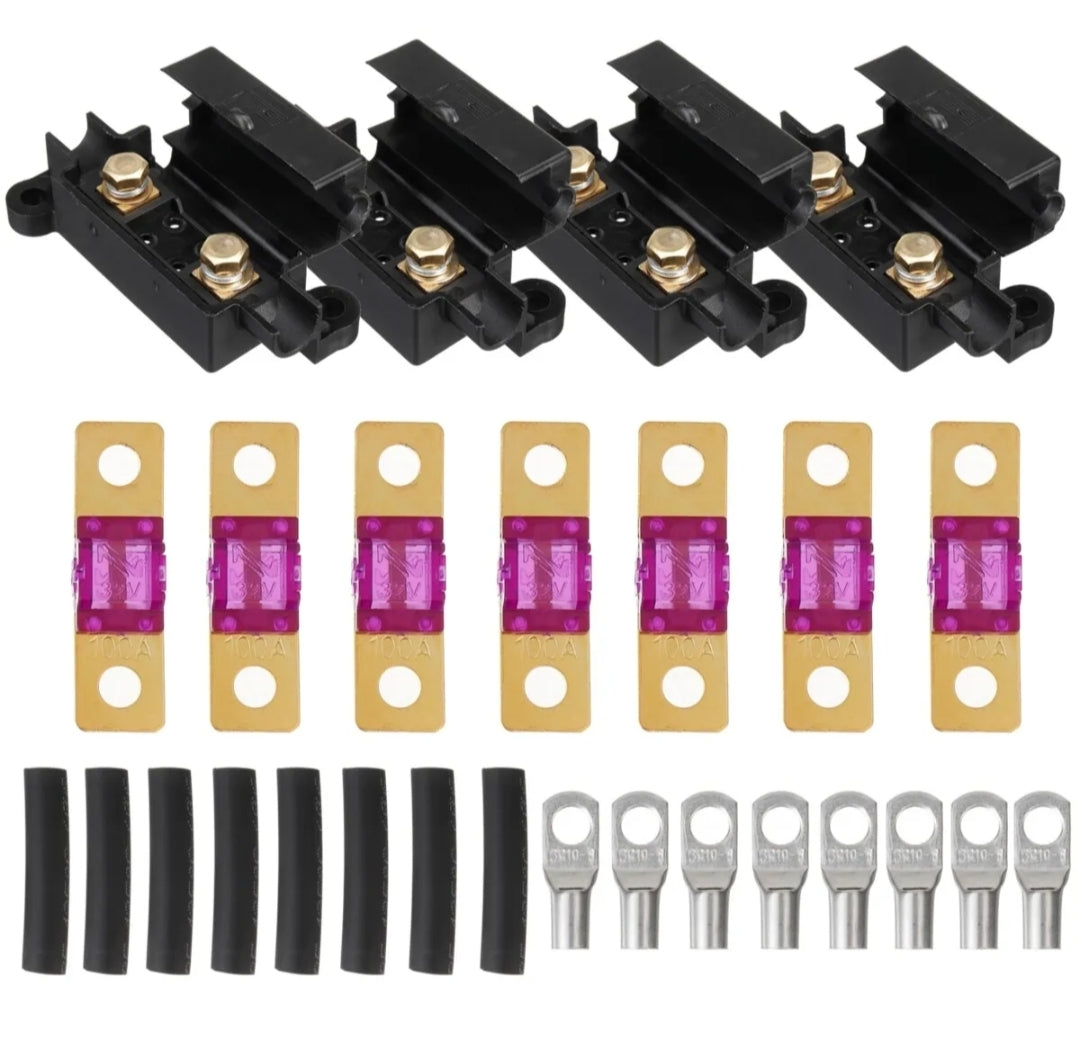

Both devices offer solar panel protection devices. Fuses (like MIDI fuses) are cost-effective and provide excellent single-trip protection, while solar panel circuit breakers offer the convenience of being resettable.

Fuse Sizing Recommendations

Correct fuse sizing for solar panel components is crucial. As a general rule, fuses should be sized at 125% of the maximum expected continuous current. For example, a 50A DC-DC charger wiring would typically require a 60A fuse. Always consult the manufacturer's recommendations for the best fuse for solar panel components you are installing.

General Tips for 12V Solar Wiring Safety

For any off-grid ute solar or
