Essential Solar Panel Fuse Requirements & Circuit Breaker Guide for Your Ute & Vehicle Solar System

Embarking on an off-grid adventure with your ute or campervan? Ensuring the safety and efficiency of your 12V solar system is paramount. This guide will walk you through the critical solar panel fuse requirements and the role of a circuit breaker for solar panel installations, guaranteeing a safe and reliable power setup for your vehicle.

Why Is Solar Panel Protection Crucial for Your Vehicle?

When it comes to ute solar panel installation, safety should always be your top priority. Without proper solar cable protection, an electrical fault could lead to serious issues, from damaged equipment to vehicle fires. Overcurrent protection solar devices like fuses and circuit breakers are essential for preventing solar wiring fires and ensuring overall vehicle solar safety. They safeguard your solar panels, batteries, DC-DC charger, and wiring from short circuits and excessive current.

Understanding Solar Panel Fuse Requirements

Fuses are sacrificial devices designed to melt and break a circuit when current exceeds a safe level, protecting your components. Here’s what you need to know about solar panel fuse requirements:

Inline Fuses and Current Protection

An inline fuse for a solar panel should be installed as close as possible to the power source. This offers immediate solar panel current protection, especially against a solar panel short circuit protection event. The fuse size must be carefully calculated based on the maximum current your solar array can produce (Imp) and the cable gauge. For instance, if your solar panel has an 8.5A short-circuit current, a fuse size solar panel 8.5a would be too small for continuous operation. Typically, you'd select a fuse rated at 1.25 to 1.5 times the maximum operating current.

Key Fuse Locations in Your Solar Setup

• Solar Panel to Charge Controller: A fuse here protects the wiring and charge controller from excessive current from the panels.
• Charge Controller to Battery: This fuse protects the battery and wiring from the charge controller, especially crucial for dual battery solar wiring and auxiliary battery solar charge systems.
• DC-DC Charger Solar Input Fuse: Essential for systems utilizing a solar panel to DC-DC charger fuse to protect the charger from surges.
• Inverter (if applicable): High-rated fuses protect the inverter from battery short circuits.

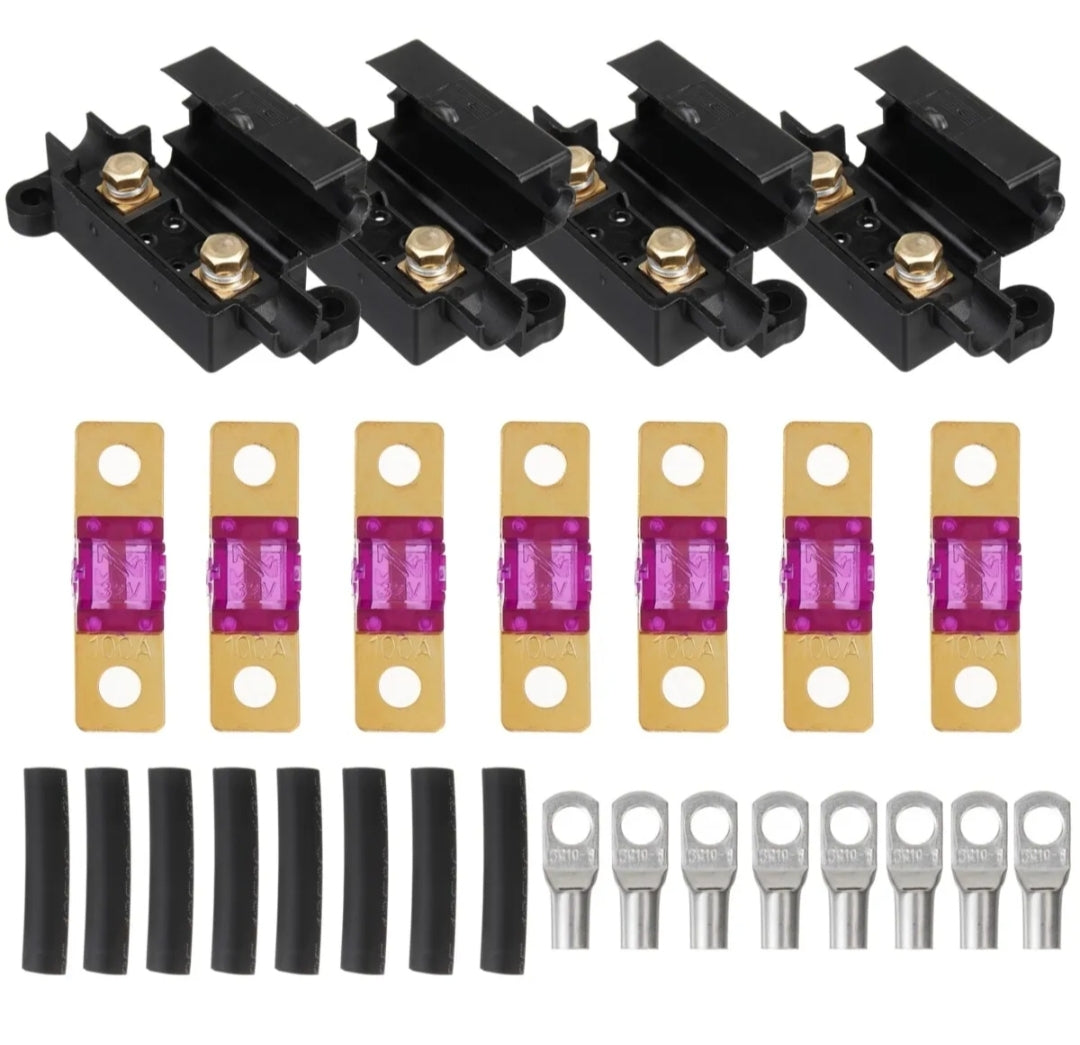

For a reliable and robust system, consider our range of MIDI fuse kits, specifically designed for high-current 12V applications like those found in Renogy solar ute setups and other popular Australian vehicle solar solutions.

Fuses vs. Circuit Breakers: What's Best for Your 12V Solar System Ute?

Understanding the difference between fuse vs circuit breaker solar applications is key for optimal protection:

• Fuses: Once a fuse blows, it needs to be replaced. They are simple, reliable, and often cheaper upfront. Ideal for points where faults are less common but catastrophic if they occur.
• Circuit Breakers: These devices can be reset after tripping, making them convenient for temporary overloads or troubleshooting. A circuit breaker for solar panel use can also act as a disconnect switch, which is handy for maintenance or shutting down parts of your system. They are often preferred for larger systems or where frequent tripping might occur. For RV solar circuit breaker applications, resettable breakers offer great convenience.

For your 12V solar system ute, a combination of both often provides the best protection. For example, high-rated fuses near the battery bank, and resettable circuit breakers for individual loads or panels.

Wiring Your Ute Solar System Safely: A Step-by-Step Overview

Correct solar panel wiring diagram 12V knowledge is vital for a functional and safe ute canopy solar setup.

Planning Your Off-Grid Ute Power Setup

Before you even begin to how to wire solar panel ute, plan your layout. Consider your solar panel wattage (e.g., 160W solar panel wiring), battery capacity (e.g., 120ah battery solar charging), and specific appliances you’ll run. This determines your solar charging system components and wire gauges. Always use appropriate 4mm² solar cable protection or thicker for higher current applications.

Integrating Your DC-DC Charger

Many Australia ute solar setups incorporate a DC-DC charger wiring solar input. Ensure your 50a DC-DC charger setup includes correctly sized fuses on both the solar input and battery output to protect the unit and your auxiliary battery. This is a critical step for efficient battery charging solar ute operation.

For all your vehicle solar power solutions, remember that proper fusing is not just a recommendation—it's a requirement for safety and longevity.

Conclusion

Implementing the correct solar panel fuse requirements and circuit breakers is non-negotiable for any ute solar panel installation or other 12V vehicle power system. By understanding where and why to install these vital protection devices, you can prevent potential hazards and enjoy your off-grid adventures with peace of mind. Explore our comprehensive range of high-quality fuses, circuit breakers, and fuse kits tailored for your vehicle's solar setup today!
