The Ultimate Guide to MIDI Fuses and ANS Fuse Holders for High-Current Protection
In the world of 4WD touring, RV caravans, marine vessels, and sophisticated dual battery setups, protecting your critical electrical systems from power surges and overloads is not just a necessity—it's a matter of safety and system longevity.
This comprehensive guide delves deep into the essential role of MIDI Fuses and ANS Fuse Holders, specifically designed for high-current protection applications ranging from 20A up to 200A. Understanding these components is crucial for ensuring the safety and reliable operation of your valuable equipment.
What is a MIDI Fuse and Why is it Essential?
A MIDI Fuse is a compact, blade-style fuse commonly used in medium to high-current circuits.
Unlike smaller automotive fuses (like ATO/ATC blade fuses), the MIDI fuse is engineered to handle significant electrical loads reliably. Its robust, bolt-on construction minimizes vibration and movement, ensuring a stable connection even in the most demanding environments, like off-road vehicles or engine bays.
You will find them available in a wide array of amp ratings, ensuring there’s a perfect match for nearly any application, from protecting a dedicated power outlet to securing your main battery circuit.

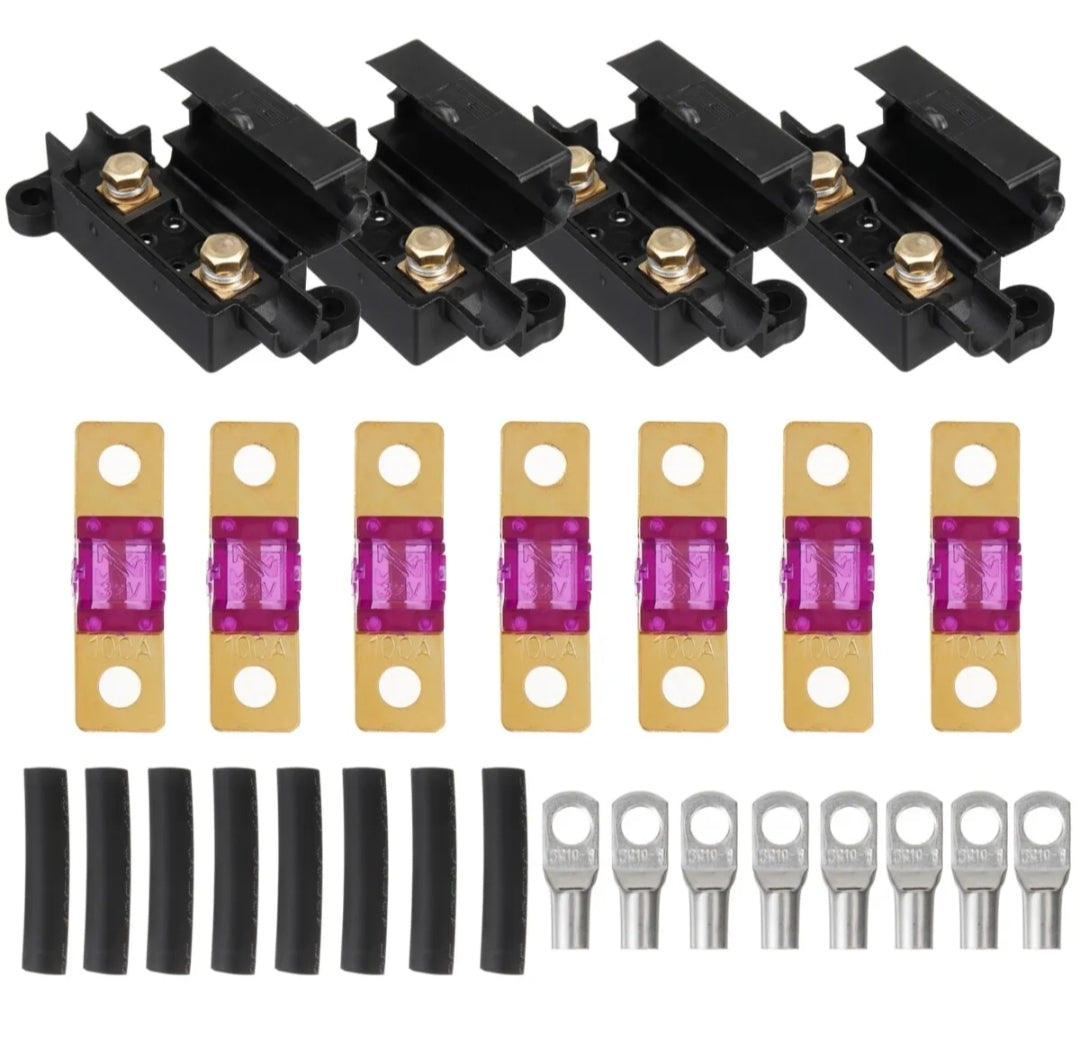

The Role of the Fuse Holder: ANS and MIDI Options
The fuse holder is just as important as the fuse itself. It provides a secure, insulated housing for the fuse, ensuring proper electrical contact and protecting the connection from environmental factors. For high-current protection, the ANS fuse holder and the MIDI fuse holder are the standard, professional-grade choices.
Key Features of Quality Fuse Holders:
- Bolt-On Design (Low Contact Resistance): Quality ANS and MIDI holders feature a bolt-on connection. This design ensures a strong, measurable, and low-resistance electrical contact. In high-current applications, low contact resistance is vital to minimize heat buildup, prevent power loss, and avoid potential fire hazards associated with loose connections.
- Robust Connectors: High-quality holders often utilize copper or zinc terminals (sometimes plated) for optimal conductivity and crucial corrosion resistance, especially in marine or humid outdoor environments.
- Inspection Window: An inspection window allows for quick visual checks of the fuse element. This makes troubleshooting significantly easier, allowing you to quickly determine if the fuse has blown without needing a multimeter.
- Stackable Design: Some advanced holders offer a stackable or modular design, enabling neat, compact, and professional installation of multiple fuses in one centralized location.
Core Comparison: Why MIDI Fuses Surpass the Competition
To truly appreciate the MIDI fuse, it is helpful to compare it against other common automotive fuses. The choice often comes down to the required current and, critically, the connection type.
MIDI vs. Maxi vs. Inline Fuse: Choosing the Right Protection
For more details, please read our dedicated comparison article: In-Depth Reading: The Ultimate Comparison of MIDI Fuses vs. Inline Fuses.
| Feature | MIDI Fuse (ANS) | Maxi Fuse (APX) | Inline Fuse (ATC/ATO) |
|---|---|---|---|
| Current Range | 20A – 200A+ | 20A – 80A | 1A – 40A |
| Connection Type | Bolt-On (Highest Security) | Push-in (Blade) | Push-in (Blade) |
| Contact Resistance | Extremely Low | Medium | High (Risk of Heat) |
| Heat Dissipation | Excellent | Good | Poor (High Risk of Melting Holder) |
| Best Used For | Main power lines, Inverters, Dual Battery Chargers (BCDC) | Secondary power distribution, Mid-range accessories | Low-current lights, small electronics, minor circuits |
Why Bolt-On is the Only Safe Choice for High Current:
For any circuit exceeding 40-50 Amps, a push-in blade connection (Maxi or Inline) creates a high risk of heat generation. The friction contact point in push-in fuses is unreliable for sustained high currents, leading to excessive contact resistance. This causes the fuse holder, and potentially the surrounding wiring, to melt or catch fire. The bolt-on design of the MIDI/ANS fuse ensures a mechanically secure and electrically efficient connection, making it the only professional and safe solution for your main high-current accessories and charging systems.
Get Reliable Protection for Your Heavy-Duty Applications
Key Application Deep Dive
The reliability of MIDI Fuses makes them indispensable for your core customer base.
Wiring Applications: Designed for 4x4s, RVs, and Marine Vessels
Dual Battery System Protection – A Non-Negotiable Requirement
In any dual battery setup, safety mandates that both the start battery and the auxiliary battery must have a primary fuse installed as close to the terminal as possible.
-
Protecting the Charger (e.g., Redarc BCDC): MIDI fuses are essential for protecting the wiring run to the charge controller. A general rule of thumb for selecting the appropriate amperage for a BCDC system fuse is to choose an amp rating that is 1.25 times the maximum rated output of the charger (e.g., for a 40A BCDC, use a 50A MIDI fuse). This allows for momentary current spikes without blowing the fuse, while still protecting the wiring.
Learn More: How to Choose the Right Amperage for Your Kit
Inverter and High-Power Accessories
Inverters, winches, and large refrigerators draw massive amounts of current.
- Selecting the Right Amperage for an Inverter: To calculate the required fuse size, divide the inverter's Wattage by the battery Voltage (e.g., 1000W / 12V = 83.3A). You must then select the next size up in MIDI fuse (e.g., 100A or 125A), but always ensure your wiring is rated higher than the fuse.
Marine Environment Special Requirements
Saltwater and humidity accelerate corrosion, which directly increases contact resistance and heat.
- Corrosion Resistance: For marine fuse systems, the ANS fuse holder is crucial because its enclosed, bolted design offers superior protection against moisture intrusion. Always inspect the terminals of boat fuses regularly for signs of oxidation or rust.
Installation, Maintenance, and Safety Standards
A quality fuse is useless without a professional installation. Attention to detail ensures both safety and performance.
Installation and Maintenance: Ensuring Safety and Longevity
Correct Installation Steps (Preventing Loose Connections)
The single biggest cause of high-current system failure is insufficient torque on the bolt-on connection. A loose bolt leads to a high-resistance joint, causing extreme heat, melting the holder, and potentially starting a fire.
- Torque is Key: Always use the manufacturer's specified torque setting (usually a firm hand-tightening, plus a small fraction of a turn) when connecting the MIDI fuse to the ANS holder terminals.
-
Wire Gauge Matching: Ensure the cable lugs and wire gauge you use are correctly sized for the current—a fuse protects the wire, not the appliance.
Related Reading: A Guide to High Conductivity Cable Lugs
Troubleshooting and Maintenance
- Quick Test: Utilize a multimeter set to continuity mode to quickly test the fuse element without removing it entirely.
- Visual Inspection: Regularly check the inspection window and the plastic housing for any signs of discoloration, melting, or heat stress, which indicate an underlying high-resistance issue.
Thermal Derating in Hot Environments
In areas of high ambient temperature (like an engine bay), the fuse's maximum safe current carrying capacity can be reduced—a phenomenon called thermal derating.
- Professional Tip: If installing a high-current fuse in an extremely hot environment, it is professional best practice to select a fuse amp rating slightly higher than your calculated need (e.g., 150A instead of 125A) to prevent nuisance tripping due to environmental heat stress.
Safety Standards and Quality Importance
We emphasize the necessity of using only high-quality, certified fuses and fuse holders. Low-quality, generic fuses often use inferior materials that lead to poor performance and dangerous failure modes. Prioritize products that emphasize:
- Quality Materials: Fire-retardant casing and high-conductivity terminal materials (like copper or zinc) for a reliable, low-heat connection.
- Compliance: Fuses and holders should meet recognized industry standards (e.g., 32V DC rating).
Frequently Asked Questions (FAQ)
Q: What is the difference between a MIDI fuse and an ANL fuse?
A: MIDI fuses (up to 200A) are ideal for medium-to-high current applications, offering a compact and robust solution. ANL fuses are designed for even higher currents (200A to 750A+) and are typically used in very large inverters or entire system distribution. For most 4WD and RV dual battery setups, the MIDI Fuse provides the perfect balance of size, current rating, and stability.
Q: How far away from the battery should I install the MIDI fuse?
A: Safety standards recommend installing the fuse as close to the power source (the battery terminal) as physically possible. The wire run before the fuse should ideally be less than 7-18 inches (17-45 cm). This ensures that the primary protection is in place immediately, securing the entire length of the cable run from a short circuit.
Q: Why is my fuse holder getting hot?
A: A hot fuse holder almost always indicates high contact resistance. This is typically caused by one of two issues: 1) The bolt-on connection is loose (insufficient torque) causing a "virtual connection," or 2) The terminals are corroded due to moisture exposure. You must immediately disconnect power, check the tightness, and clean the terminals before operating the system again.
Q: What should I do when a MIDI fuse blows?
A: Never replace a blown fuse with a new one immediately. A fuse blows for a reason, usually a short circuit or an extreme overload. You must first find and fix the root cause of the overload—e.g., a shorted accessory or a faulty appliance—before replacing the fuse with one of the correct amperage. Replacing it without fixing the fault can lead to rapid fuse failure or system damage.
