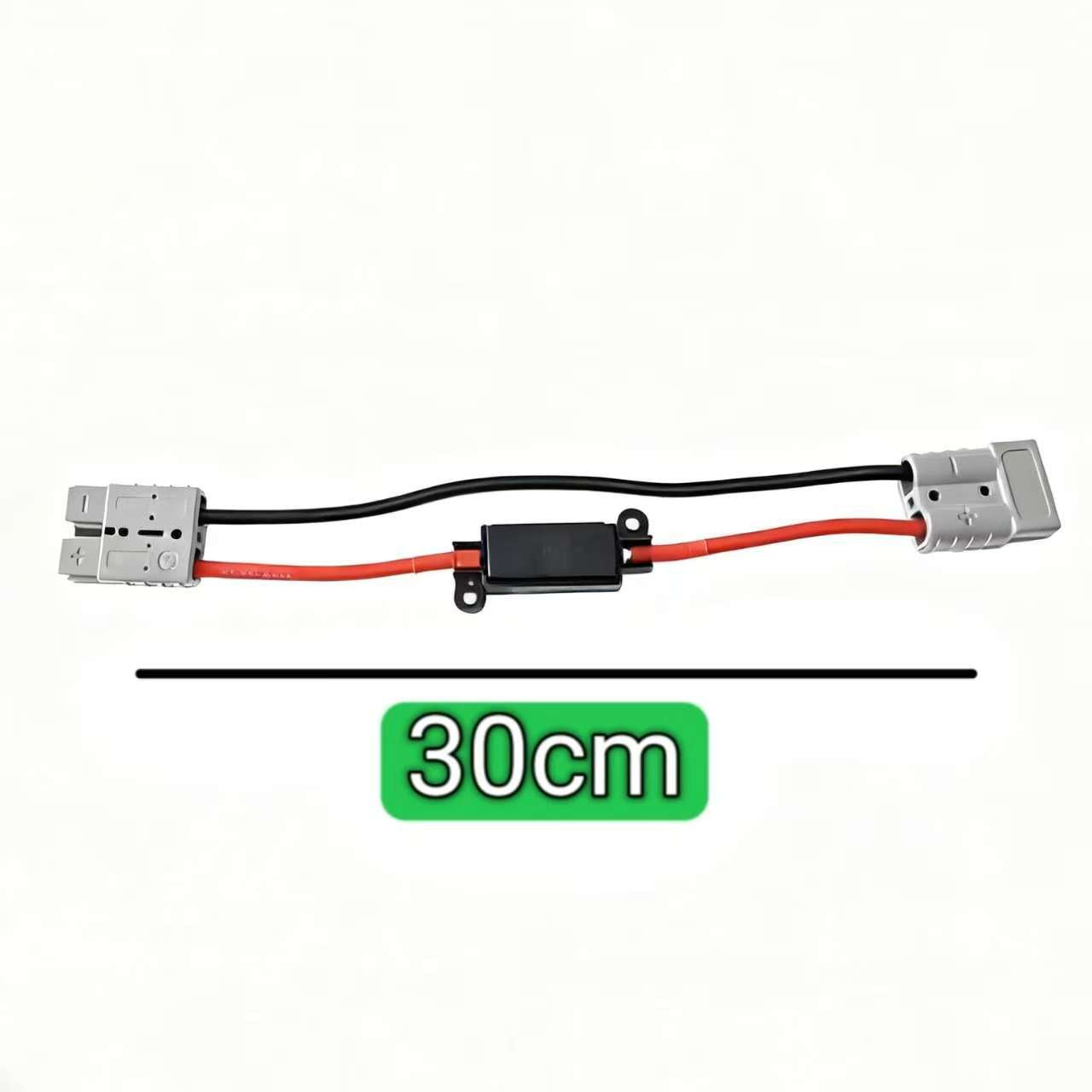

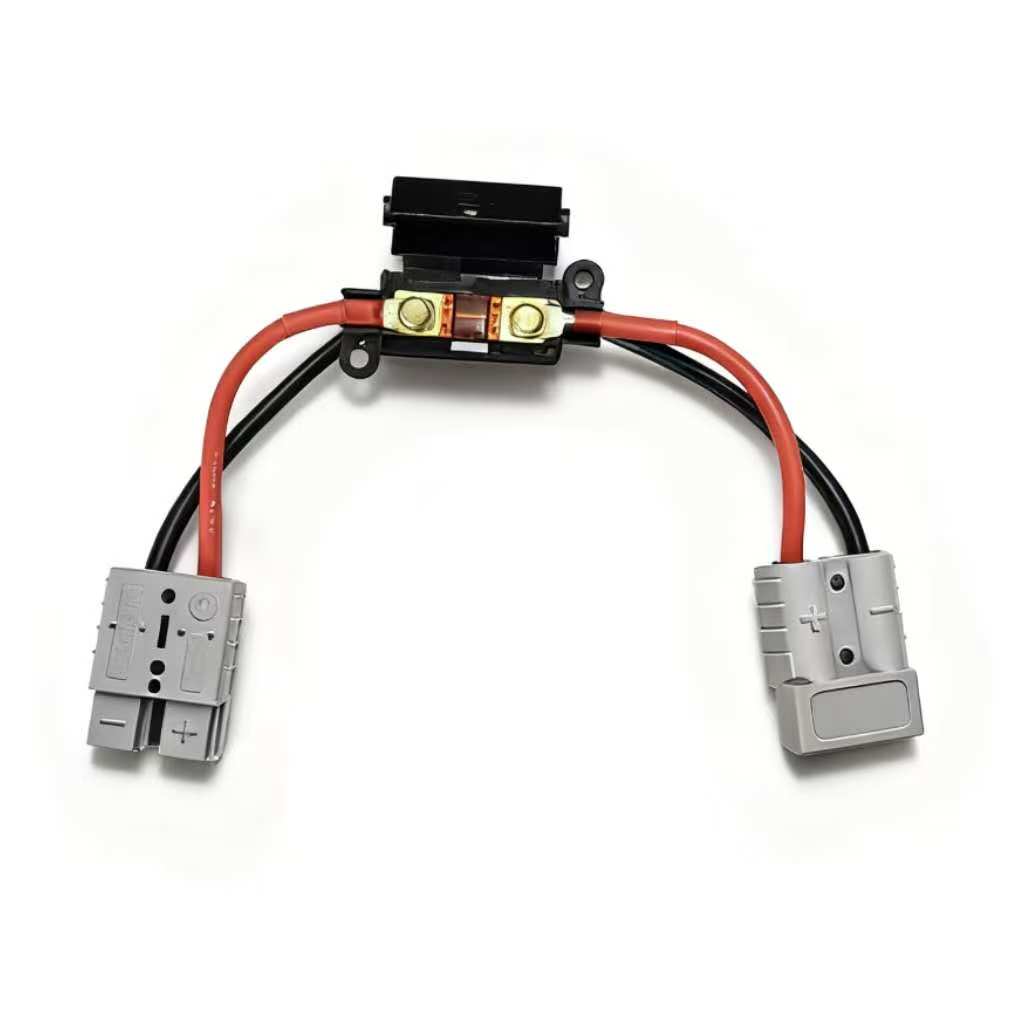

50A Midi Fused 30 cm Anderson Plug to Anderson Plug Extension Cable
50A Midi Fused 30 cm Anderson Plug to Anderson Plug Extension Cable
Couldn't load pickup availability
Professional Grade Circuit Protection. Upgrade your DC power distribution with this high-performance Anderson to Anderson extension lead. Featuring 30cm of 10 AWG heavy-duty cable and a robust Midi Fuse holder, this lead is engineered for environments where standard blade fuses fail. It’s the ultimate "safety bridge" for connecting solar panels, battery boxes, and dual-battery systems.
💡 Knowledge Center: Why Midi Fuses?

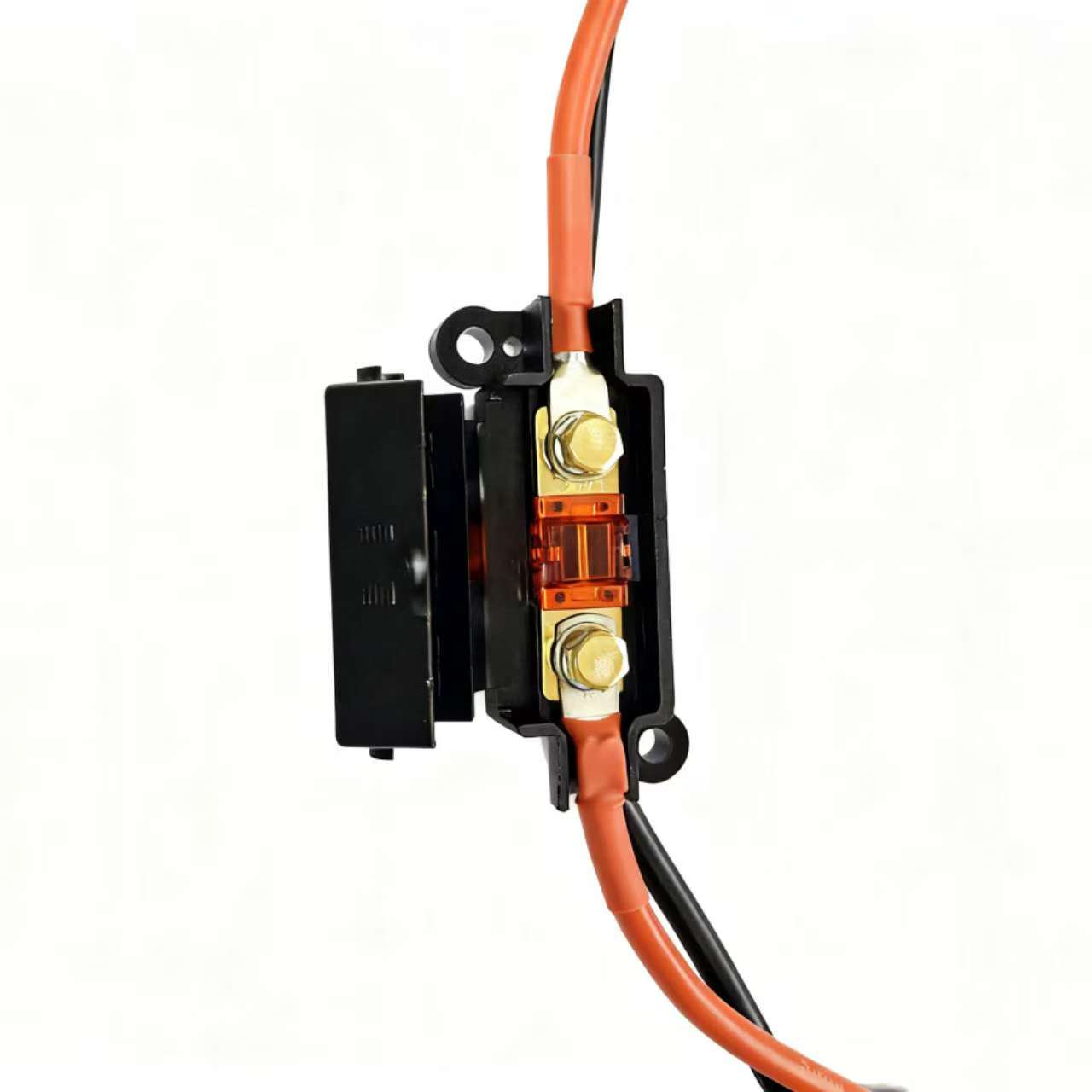

Most standard Anderson leads use "Blade" fuses. However, Midi Fuses are preferred by professionals for high-current DC systems because they offer a more secure, bolted connection. This results in lower resistance, better heat dissipation, and superior vibration resistance—essential for off-road 4WD and caravan applications.
🏆 Why Choose Our Midi-Fused Lead?
- ✓ Bolt-Down Reliability: The Midi fuse system provides a sturdier connection that won't wiggle loose over corrugated roads.
- ✓ True 10 AWG Copper: High-strand count copper core ensures maximum conductivity and minimal voltage drop over the 30cm span.
- ✓ Flame-Retardant Housing: Safety-first construction using UL94V-0 rated polycarbonate for the Anderson plugs.
- ✓ Plug-and-Play Ready: Comes pre-installed with a 50A Midi Fuse—no crimping or assembly required.
📊 Technical Specifications
| Function | Anderson to Anderson Extension (Male-to-Male) |
|---|---|

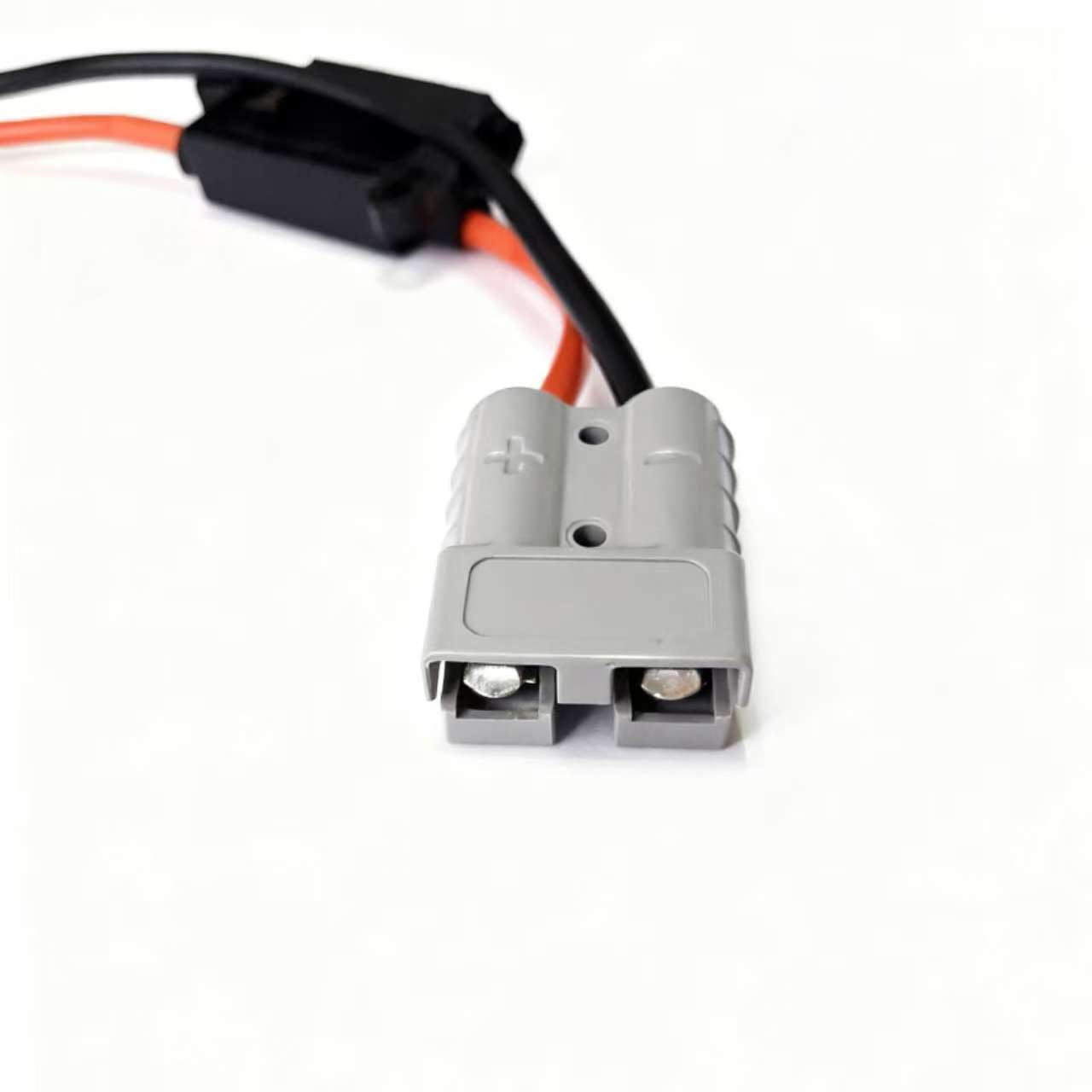

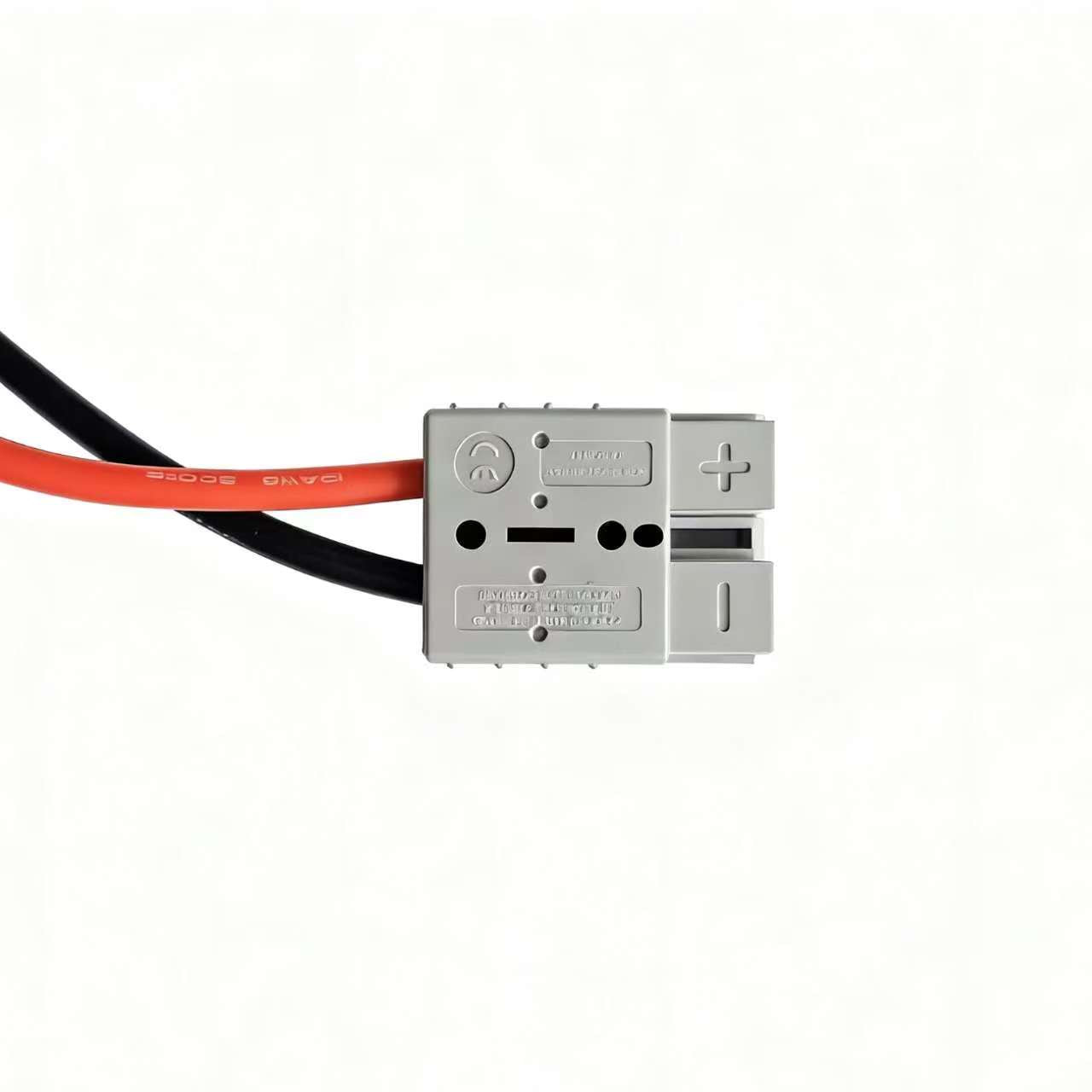

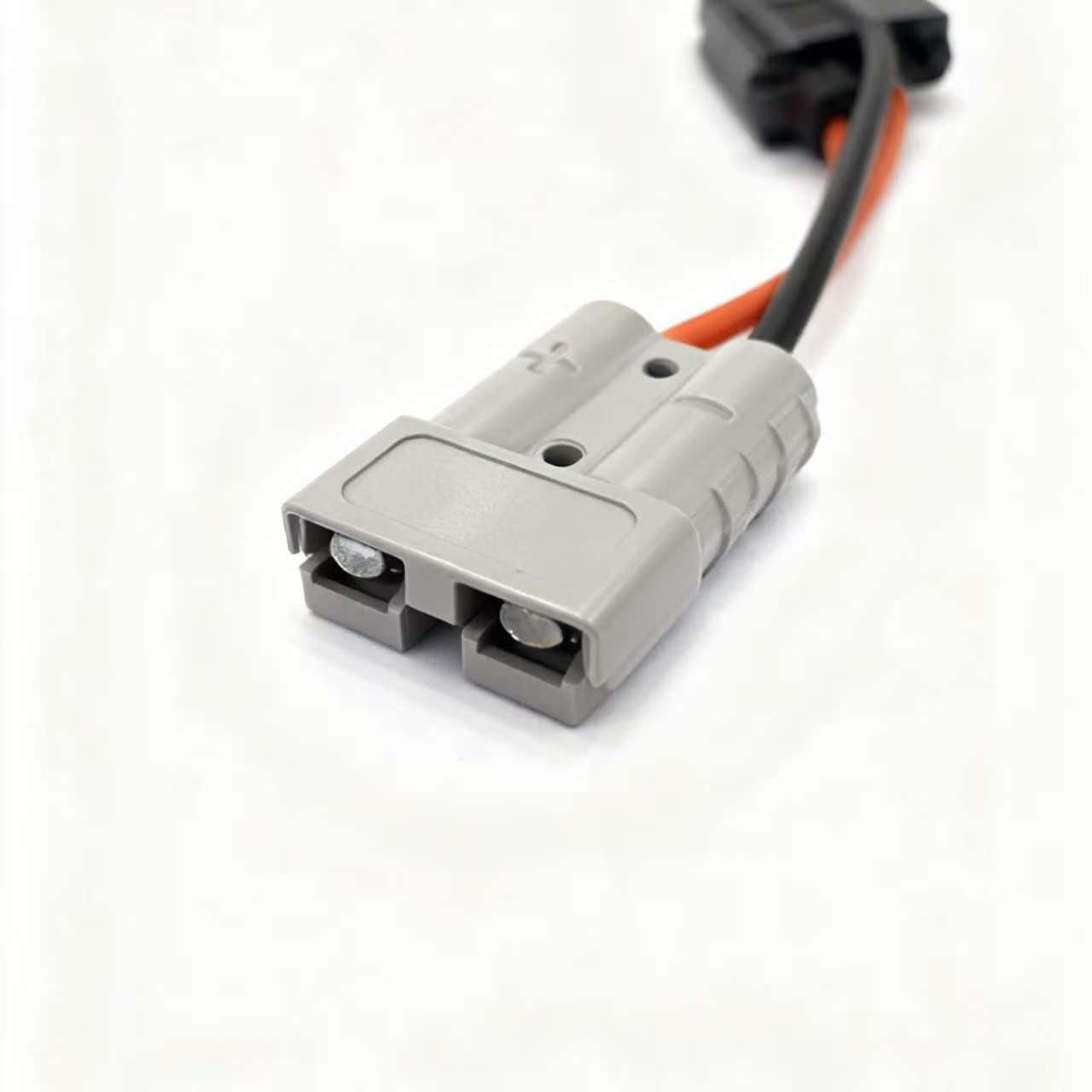

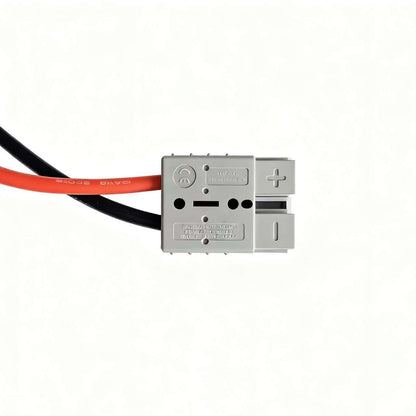

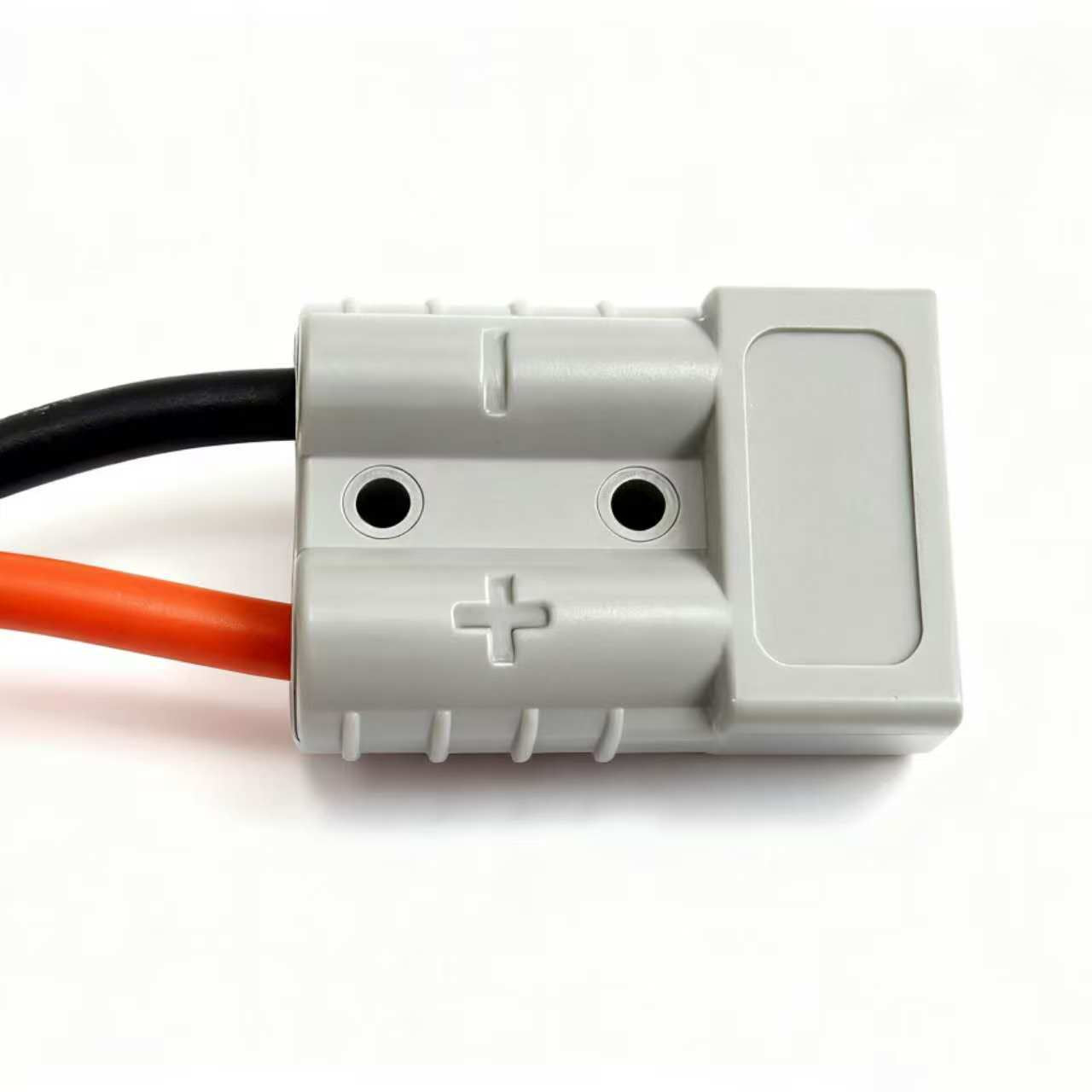

| Connector Type | 50A SB50-Style (Universal Grey) |
| Protection | Midi Fuse Holder + 50A Midi Fuse (Installed) |
| Cable Gauge | Heavy-Duty 10 AWG Twin Core |
| Length | 30 cm (Pigtail / Extension) |
| Voltage Range | 12V – 48V DC Systems |
| Terminals | Silver-Plated Tinned Copper (Anti-Corrosion) |
🛠️ Ideal Application Chart
| Setup Type | Primary Benefit |
|---|---|
| Dual Battery | Safely links auxiliary batteries with high-vibration resistance. |
| Solar Input | Protects regulators from surges when connecting solar blankets. |
| DC-DC Charging | Acts as a fused pigtail for professional charger installs. |
| Battery Boxes | High-current fused output for fridges and compressors. |
❓ Frequently Asked Questions
A: Yes. The Midi fuse holder is universal for Midi-size fuses. You can easily swap the 50A fuse for a lower rating if your specific device requires it.
A: Absolutely. These use the standard SB50-style genderless connectors, making them 100% compatible with all grey 50A Anderson-style plugs.
A: This length is designed to minimize voltage drop and bulk. It is ideal as a "fused pigtail" that stays close to the battery or device connection.
Professional Protection for Your Off-Grid Power
Don't settle for standard blade fuses. Upgrade to the stability of a Midi-fused system today.
