Connectors For IP67 MC4 Solar Panel 30A Plug Socket Male&Female Waterproof
Connectors For IP67 MC4 Solar Panel 30A Plug Socket Male&Female Waterproof
Couldn't load pickup availability
Professional Solar Connectivity. Secure your solar infrastructure with our IP67-rated MC4 connectors. Designed for heavy-duty DC power systems, these male and female pairs ensure a weather-tight, low-resistance connection between solar panels and regulators. Engineered to withstand the intense UV radiation and temperature fluctuations of the Australian climate.
🏆 Why Home Pik MC4 Connectors?
- ✓ Advanced PPO Housing: Exceptional heat and aging resistance ensures the plugs won't crack or degrade under 10+ years of sun exposure.
- ✓ IP67 Waterproof Rating: Integrated double seal rings prevent moisture ingress, critical for preventing "green rot" corrosion in outdoor installs.
- ✓ UL94-V0 Fire Safety: Highest flame-retardant class for total peace of mind in high-voltage DC arrays.
- ✓ Tool-Free Locking: Secure snap-in mechanism allows for fast, stable assembly and easy maintenance.
📊 Technical Specifications

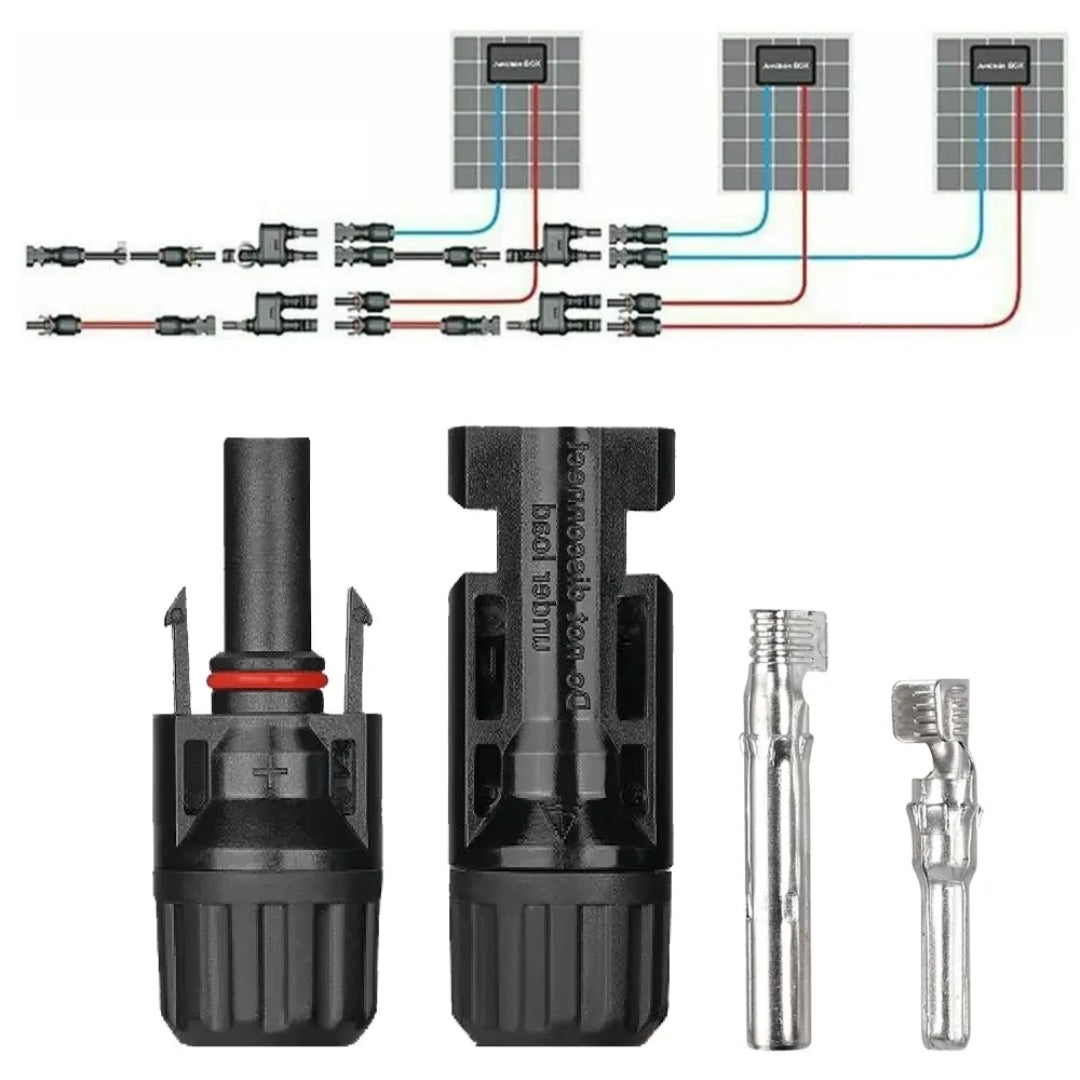

| Connector Type | MC4 Compatible (Male & Female Pairs) |
|---|---|
| Rated Current | 30A (Continuous) |
| Rated Voltage | 1000V DC (Tested to 6000V) |

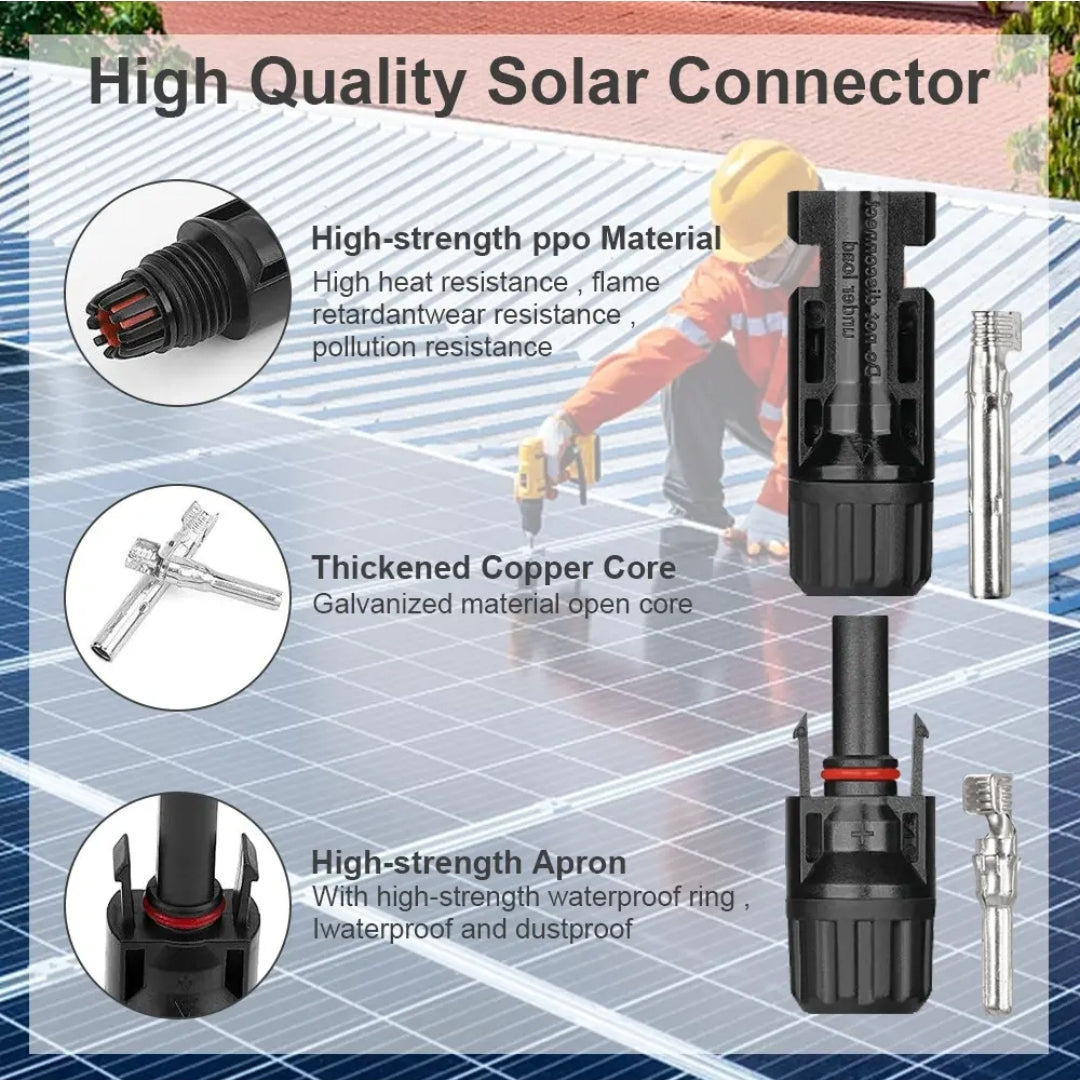

| Shell Material | High-Strength PPO (UV & Fire Resistant) |
| Contact Material | Silver/Tin-Plated Copper (Anti-Oxidization) |

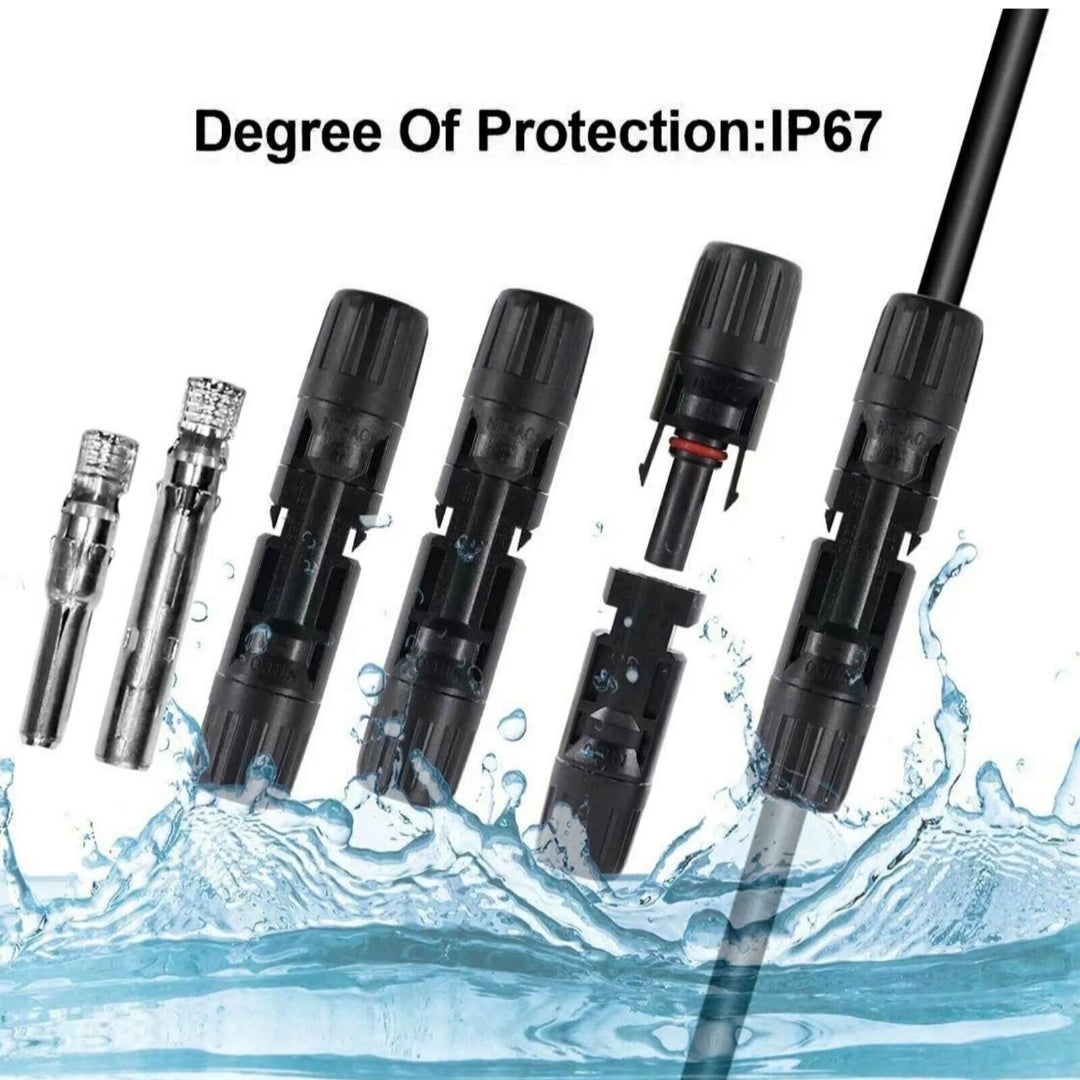

| Protection Class | IP67 Waterproof & Dustproof |
| Operating Temp | -40°C to +125°C |
| Compatibility | Standard 2.5mm² / 4mm² / 6mm² PV Cables |
💡 Educational Insight: Contact Resistance
In high-voltage solar systems, high contact resistance leads to heat buildup and energy loss. Our connectors maintain a Contact Resistance of <1mΩ. This high-efficiency connection means your solar array delivers maximum power to your batteries, not losing it as heat at the plug junction.
❓ Frequently Asked Questions
A: Yes. These are industry-standard MC4 connectors and are compatible with virtually all modern solar panel brands and PV cables.

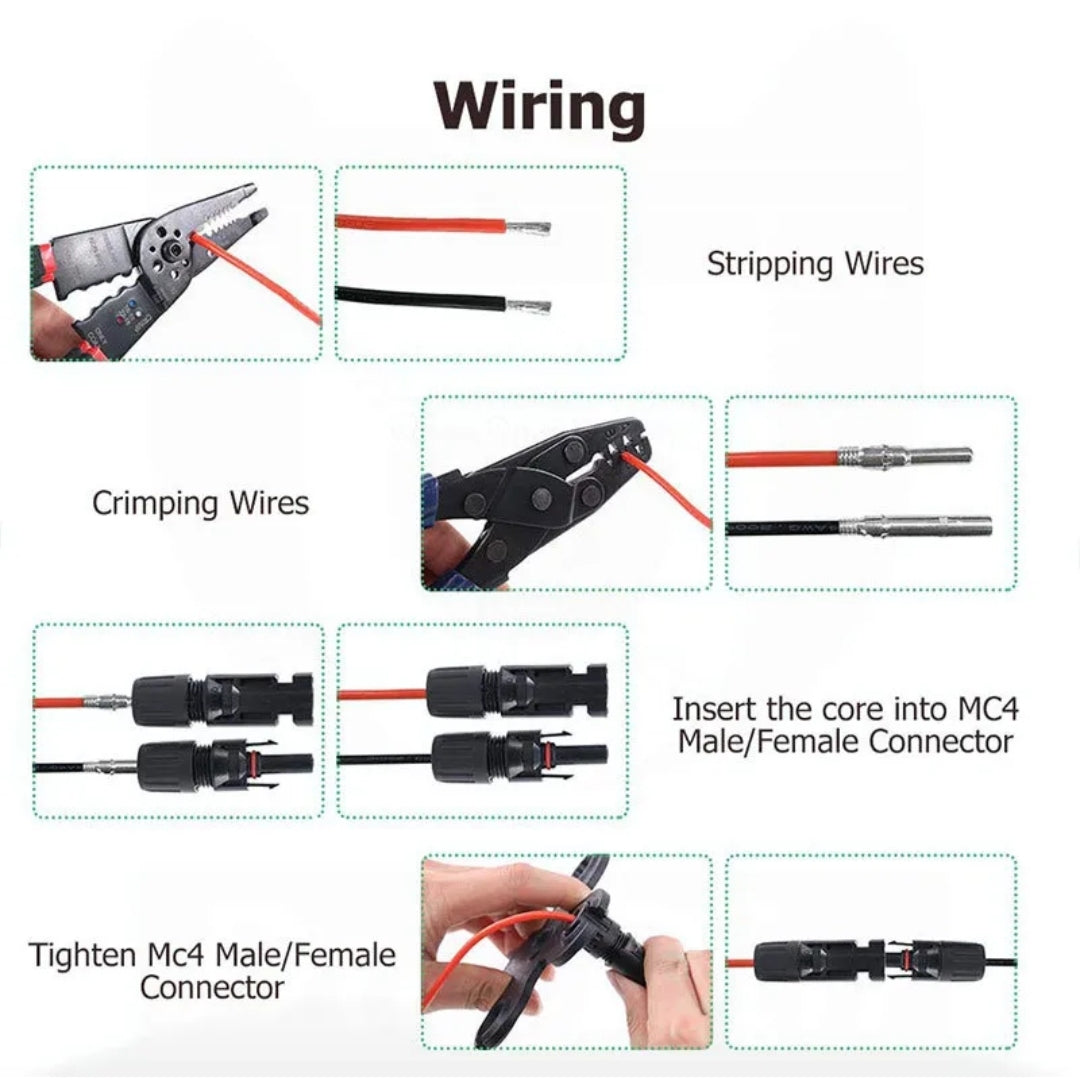

A: While an MC4 spanner tool makes it easier, the snap-in locking system is designed for a secure tool-free connection during initial installation.
